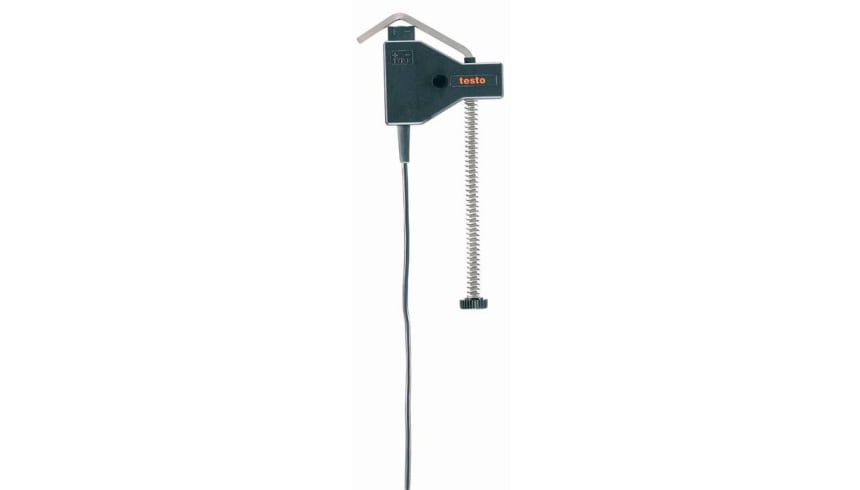

    Pipe wrap probe with NTC temperature sensor - For measurements on pipes (Ø 5-65 mm)

    0615 5605
    Pipe wrap probe with NTC temperature sensor for measurements on pipes (Ø 5-65 mm)

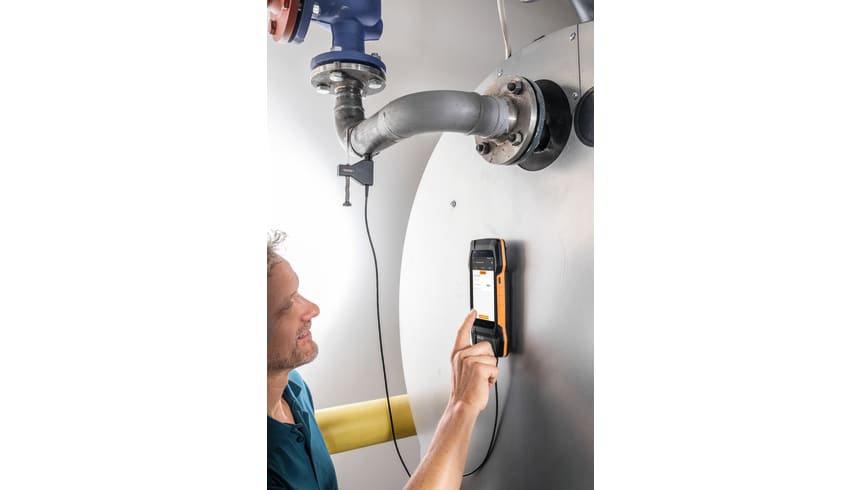

    Application pipe wrap probe with NTC temperature sensor
    $ 258.40
    1
  1. Measuring range from -50 to +120 °C
  2. The surface probe can be attached to pipes very quickly thanks to the quick-release connector
  3. Replaceable measuring head
  4. Temperature probe with precise NTC temperature sensor
  5. Use the pipe wrap probe (NTC) (with the compatible measuring instrument) to carry out fast, precise measurement of the surface temperature of pipes.
    For fast, precise temperature measurements: use the pipe wrap probe (NTC) with a compatible measuring instrument (please order separately) to measure the surface temperature of pipes.



    Pipe wrap probe (NTC) – features and areas of application

    Use the fixed cable including TUC connector to connect the pipe wrap probe (NTC) to the compatible measuring instrument. The pipe wrap probe is equipped with a high-quality NTC sensor. In the event of damage, the measuring head is easy to replace.

    The pipe wrap probe (NTC) is designed for measuring the surface temperature of pipes (pipe diameters from 5 to 65 mm) and offers numerous application options. The quick-release connector enables the surface probe to be attached to pipes quickly and easily. This makes it ideal for measuring flow and return temperatures on heating systems or for checking the temperature of refrigeration systems, for example.

    1 x pipe wrap probe (NTC) for temperature measurements on pipes (Ø 5-65 mm), with fixed cable (cable length 1.4 m).

    Temperature - NTC

    Measuring range
    -58.0° to 120.0 °F / -50 to +120 °C
    Accuracy
    ±0.4 °F (-25.0° to 176.0 °F) / ±0.2 °C (-25 to +80 °C)

    General technical data

    Weight
    4.94 oz. / 140 g
    Dimensions
    1.4 x 7.5 x 5.9 in. LxWxH / 35 x 190 x 150 mm LxWxH
    Product colour
    Black
