    testo 521-2 - Differential pressure measuring instrument 0 to 100 hPa (accuracy ±0.1% of f.v.)

    0560 5211
    testo 521-1
    testo 521-1
  1. Integrated differential pressure sensor with an accuracy of 0.1% of f.v.
  2. Calculation of flow velocity and volume flow via pitot tube (optional)
  3. Multi-point and timed mean calculation
  4. 2 probe inputs for additional pressure and temperature probes

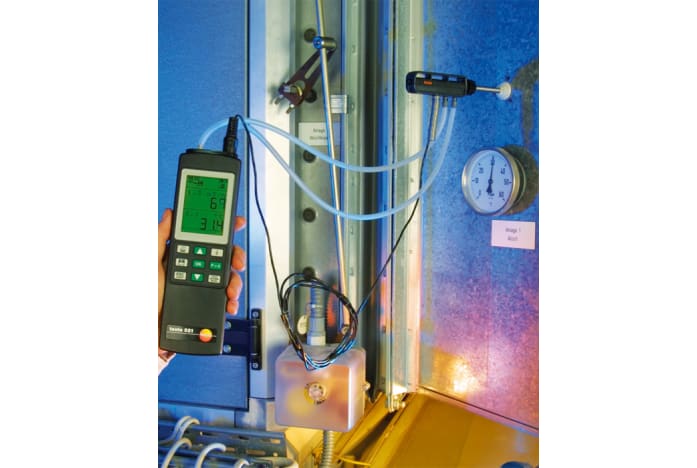

  5. The high precision testo 521-2 differential pressure measuring instrument is ideal for accurate differential pressure measurements in air conditioning and ventilation technology, for pressure drop on filters, for instance, checking fans and extractors, or for pitot tube measurements.

    The highly accurate differential pressure meter, testo 521, with an internal pressure sensor from 0 to 100 hPa, is ideal for pitot tube measurements in the range of 5 to 100 m/s. The testo 521 is available in 2 accuracy classes, the testo 521-1 with an internal pressure sensor with Class 0.2, and the testo 521-2 with an internal pressure sensor with Class 0.1.


    In the case of velocity speeds in the range of 1 to 12 m/s, you can carry out accurate measurements using the 100 Pa probe, which can be attached externally.


    The measurement data can be saved according to location and analyzed on your PC, or printed on site on your testo printer.

    testo 521-2 differential pressure measuring instrument, including calibration protocol and batteries

    General technical data

    Display type
    LCD
    Display function
    7 segment display and point matrix
    Display update
    2x per second, in fast measurement 4x per second
    Power supply
    Battery/Rechargeable battery,Mains unit 12 V
    Interface
    RS232
    Memory
    100 kB; 25,000 measuring values

    Accessories for probes

    Additional accessories and Spare parts

  6. Additional accessories and Spare parts
    Connection cable
    Connection cable.
      :
      0430 0143
    • Additional accessories and Spare parts
      9V rech. battery for instrument
      9V rechargeable battery for instrument
        :
        0515 0025
      • Additional accessories and Spare parts
        Connection hose, silicone
        Connection hose, silicone, 16.4 ft, load up to 281 inHâ‚‚O
          :
          0554 0440
          $ 69.70
          1
        • Printer and accessories

          Software and Accessories

        • Software and Accessories
          RS232 cable
            :
            0409 0178
            $ 107.00
          • Transport Case

          • Transport Case
            TopSafe
            TopSafe (protective case)
              :
              0516 0446
