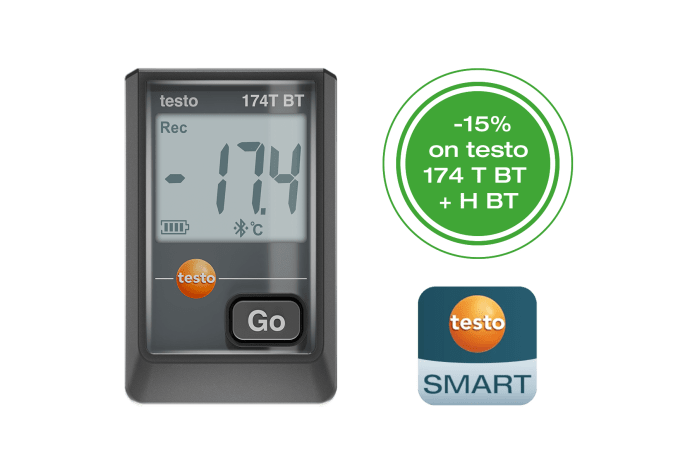

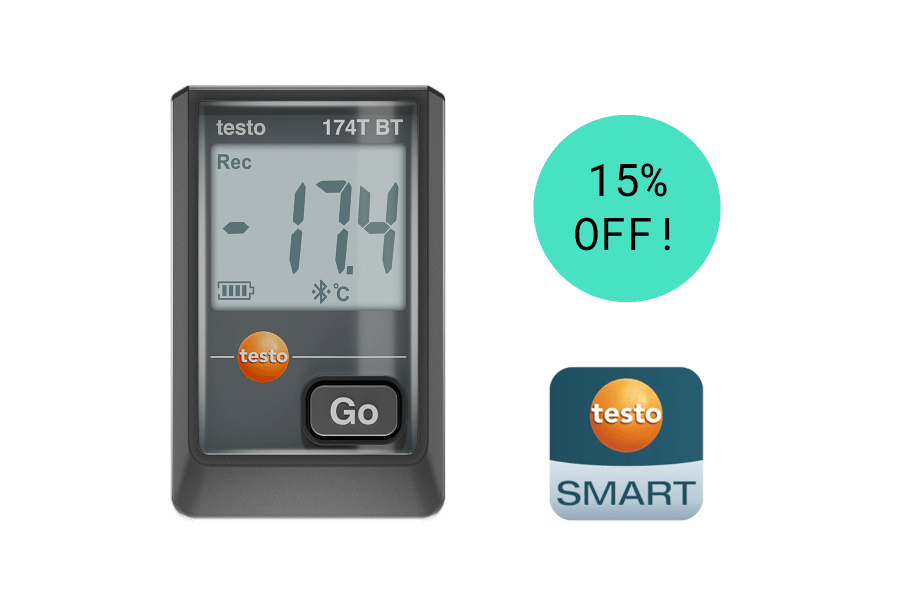

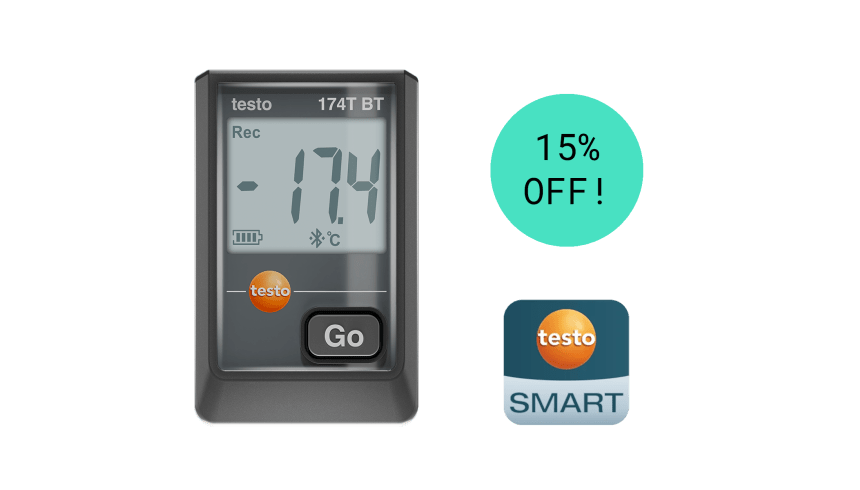

    testo 174 T BT - Mini temperature data logger with Bluetooth® and app connection

    Product no. 0572 1742 02
    +1-484-773-0111
    Make a request
    Your advantages
  1. Free app including report generation and export function
  2. Simple data analysis via Bluetooth directly at the measuring point from up to 30 metres away
  3. Accurate indoor temperature measurement from -4 °F to 158 °F
  4. Reliable automatic data backup when the battery is empty or when changing the battery
    5. The testo 174 T BT mini data logger measures temperatures from -4 °F to 158 °F and is ideal for commissioning, inspection and maintenance of all HVAC/R systems. The testo Smart App makes configuration and data analysis simple, and thanks to Bluetooth, readings can be taken from up to 30 metres away.
    • not available
      Simple and intuitive configuration and analysis of measurement data via the testo Smart App

      Simple and intuitive configuration and analysis of measurement data via the testo Smart App

    Description

    The testo 174 T BT mini data logger is ideal for efficient commissioning, inspection and maintenance of all HVAC/R systems, as well as for convenient fault diagnosis and monitoring of the indoor climate. It reliably measures indoor temperatures in the measuring range -4 °F to 158 °F and offers simple and intuitive configuration and analysis of measurement data via the free testo Smart App. The app enables complete documentation and compliance with regulations through functions such as reporting and data export. Thanks to the Bluetooth connection, you can read data directly at the measuring point from up to 30 metres away. It also provides automatic data backup when the battery is low or during a battery change to ensure measurement reliability.

    Delivery Scope

    testo 174 T BT mini temperature data logger including wall bracket, battery (2 x CR2032 lithium) and test report.

    Technical data

    Temperature - NTC

    Measuring range
    -22° to 158 °F / -30 to +70 °C
    Accuracy
    ±0.9 °F (-22° to 158 °F / ±0.5 °C (-30 to +70 °C)
    Resolution
    0.1 °F / 0.1 °C

    General technical data

    Weight
    1.24 oz. / 35 g
    Dimensions
    2 x 1 x 0.7 in. / 60 x 38 x 18.5 mm
    Operating temperature
    -22° to 158 °F / -30 to 70 °C
    Housing
    Plastic
    Protection class
    IP65
    Channels
    1 internal
    Product colour
    Black
    Standards
    EN 12830
    Measuring rate
    1 min - 24 h
    Battery life
    500 days (15 min measuring cycle, +25 °C)
    Battery type
    2 lithium batteries (CR2032)
    Memory
    16,000 measuring values
    Storage temperature
    -40° to 158 °F / -40 to +70 °C
