    testo 380 - Fine particle analyzer

    0632 3800
  1. Carry out parallel fine particle, O2, and CO measurements in real time
  2. Ideal for chimney sweeps and system technicians; easy to follow step-by-step guide for carrying out measurements according to 1. BlmSchV
  3. Large graphic color display, easy to use, low running and maintenance costs
  4. Certified for use with solid, liquid, and gaseous fuels, as well as for threshold values 1 and 2, according to 1. BlmSchV
    5. This fine particle analyzer is compliant with BImSchV Level 1 and 2, is TÜV-tested, and is compatible with the testo 330-2G LL.
    The number of solid fuel burning systems, and the fine particles they emit, has continued to soar over the past years. This, and the amendment of 1. BlmSchV, has presented chimney sweeps, heating engineers, and service technicians with a new and formidable challenge. The testo 380 fine particle analyzer is designed to aid these professionals in performing easy and precise fine particle measurements on site.

    The testo 380 particle counter. Easy to use. Complies with existing regulations

    If you are a service technician whose job it is to carry out adjustments to heating systems, or a chimney sweep who needs to carry out an acceptance inspection, you can rely 100% on the testo 380 to provide you with quick results and reliable readings. The testo 380 has a pre-programmed measuring menu that takes you step-by-step through the official procedure according to 1. BlmSchV, and a measuring program that enables you to adjust solid fuel burning systems so that they meet the new thresholds. The testo 380’s user-friendly menu guide is designed to make your job as a chimney sweep, service technician, or heating engineer - and life - easier.



    Fine particle tester with highly sophisticated sensor technology inside

    Despite being packed with highly sophisticated sensor technology, the testo 380 fine particle analyzer is extremely practical and easy to use. The testo 380 can be used to perform parallel fine particle, O2, and CO measurements in real time before presenting the results on an easy to read color display. The specially developed Testo technology tucked away inside allows readings to be taken in real time. You can also use the testo 380 to carry out core flow and draft measurements without having to change the sensor first.

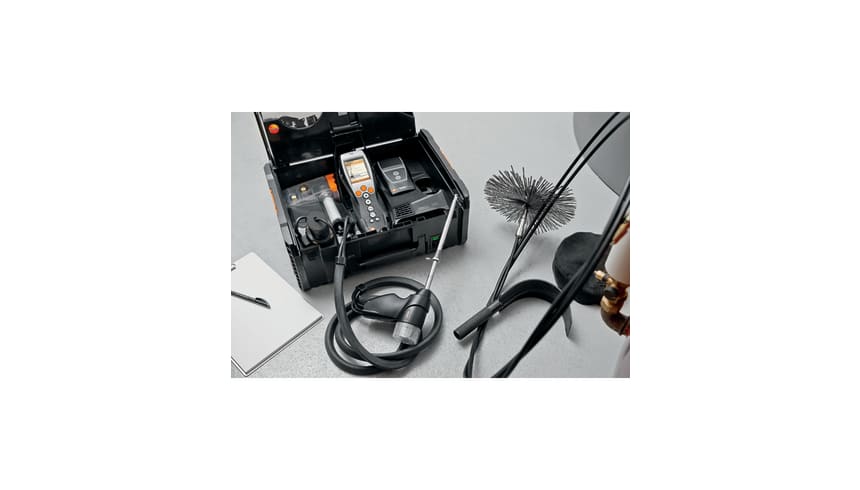

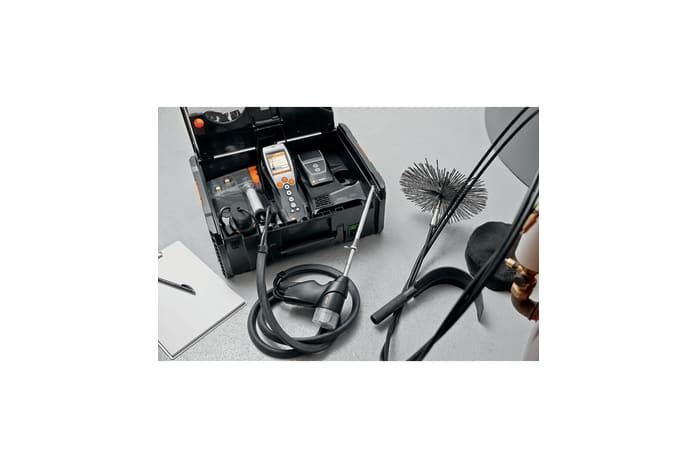

    Please note: Compatible with the testo 330-2G LL combustion analyzer. Together they form an unbeatable team; the innovative complete solution for systems using solid, liquid and gaseous fuels.

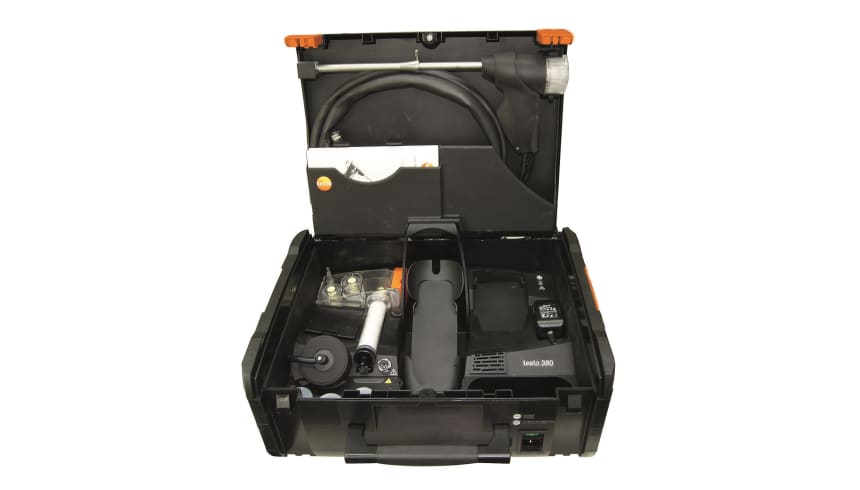

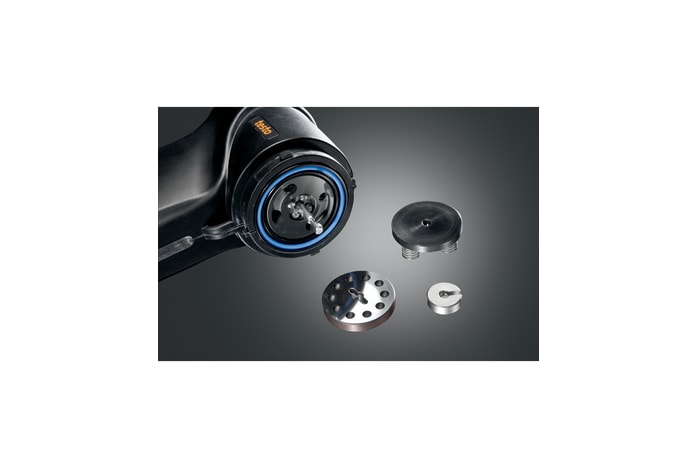

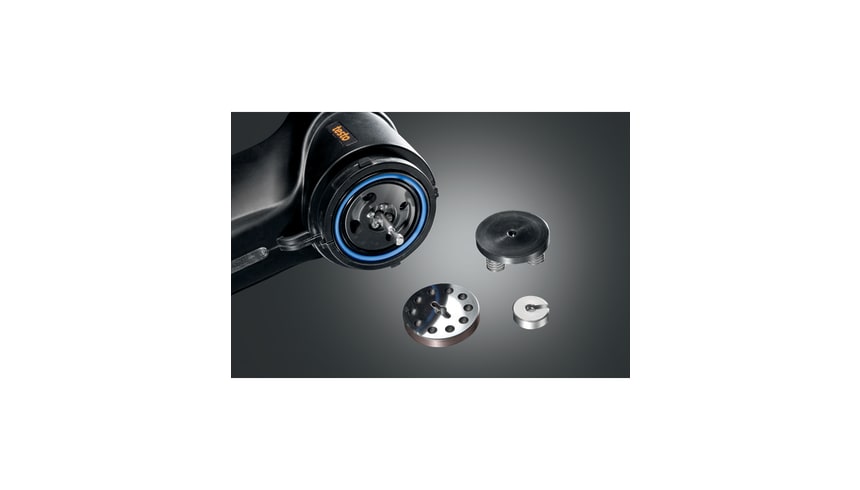

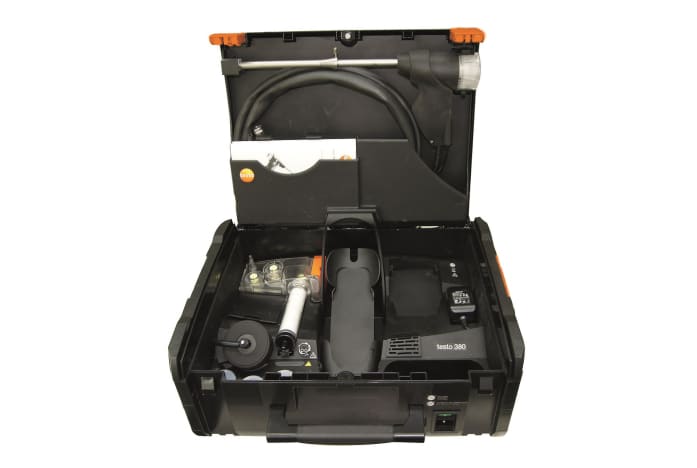

    testo 380 fine particle analyzer, fine particle sensor, and cleaning set

    General technical data

    Weight
    279 oz. / 7900 g
    Accuracy
    acc. VDI 4206-2
    Resolution
    0.1 mg/m³ (>5mg/m³)
    Dimensions
    19 x 14 x 7 in. / 475 x 360 x 190 mm
    Operating temperature
    41° to 104 °F / +5 to +40 °C
    Protection class
    IP40
    Display type
    LCD
    Display function
    shows warm-up phase and operational readiness
    Power supply
    via internal mains unit: 100 V AC/0.45 A to 240 V AC/0.2 A (50 to 60 Hz)
    Maximum
    500.000 readings
    Storage temperature
    -4° to 122 °F / -20 to +50 °C
    Measuring range
    0 to 300 mg/m³

    • Instruction manual EasyHeat software(pdf, 3.55 MB)
    • Testo ZIV driver ZIV 2000 for testo 320 and testo 330(v2.1, 2.22 MB)
      Testo ZIV driver in the 2000 version. The Testo ZIV driver is used to connect the testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface Version 2.0 defined by the Zentralverband des Schornsteinfegerhandwerks (Central Association of Chimney Sweeps, ZIV). Please check with the manufacturer of your application program as to whether this interface is supported. If Microsoft .NET Framework 4.0 has not been installed on the computer, it must be downloaded from the Microsoft website and installed on the system.
    • Testo ZIV driver for testo 300, testo 320 and testo 330(v2.3, 64.11 MB)
      The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
    • testo 380 Box(V1.17, 1.75 MB)
    • Firmware Update testo 380(63.98 MB)
