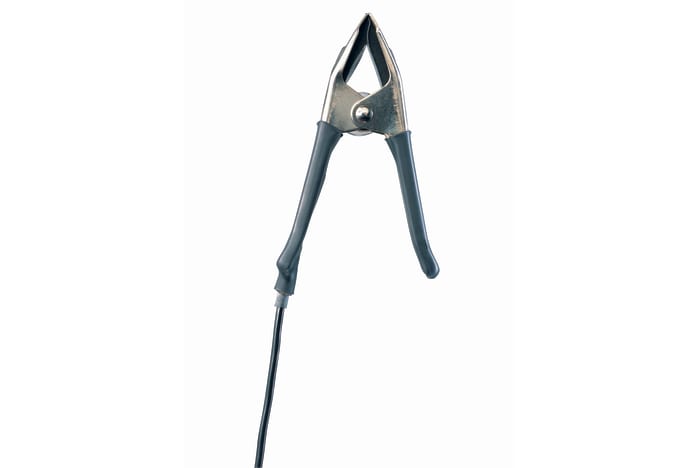

Clamp Probe Surface Probe - for temperature measurements on pipes (Ø 15-25 mm)
0602 4692Clamp Probe Surface Probe - for temperature measurements on pipes (Ø 15-25 mm)
0602 4692Collet for quick attachment of the surface probe to pipes (Ø max. 1")
Measuring range -50 to +100°C, briefly up to +130°C
Thermocouple type K temperature probe
A Type K Thermocouple Clamp Probe for measurement of pipes with a diameter of 0.6" to 1''. Probe has a measuring range of -58.0° to 212.0 °F with short term measurements of up to 266 °F.
1 x clamp probe (TC type K) for temperature measurements on pipes (Ø 15-25 mm) with fixed cable.
Temperature - Type K TC
| Measuring range | -58.0° to 212.0 °F , short-term up to +130 °C / -50 to +100 °C , short-term up to +130 °C |
|---|---|
| Accuracy | Class 2 ¹⁾ |
| Reaction time | 5 sec |
| 1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C. | |
General technical data
| Weight | 3 oz. / 82 g |
|---|---|
| Dimensions | length: 4 in. / length: 105 mm |
| Cable length | 4.921 ft. / 1.5 m |
| Fixed cable | yes |
| Product colour | silver; Black |
| Interface | plug thermocouple |
