    Surface Probe Short Term Range - Surface Probe Short Term Range

    0602 0393

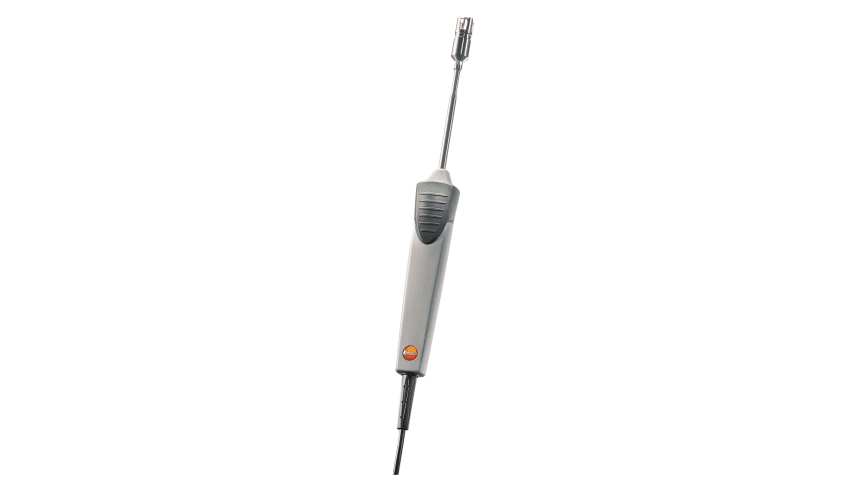

    Fast-action surface probe with sprung thermocouple strip

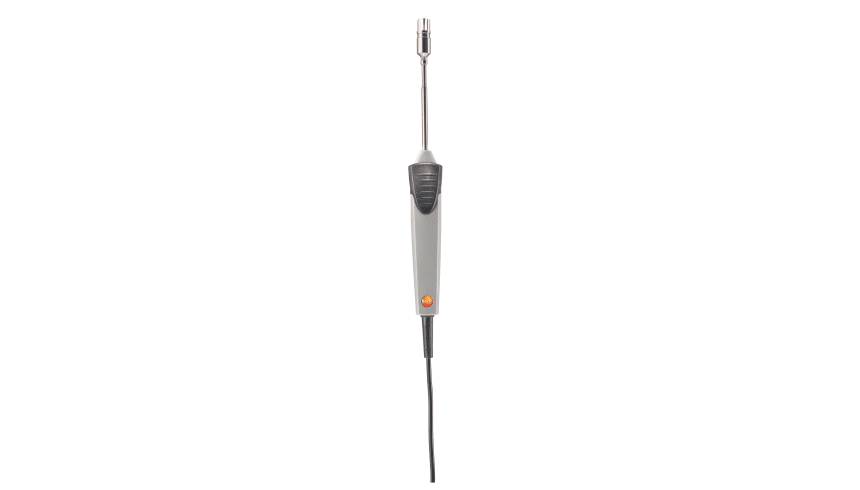

    Redaktionsschneller Oberflächenfühler mit federndem Thermometer
    $ 216.00
    1
  1. Fast response time (3 seconds) thanks to the thermocouple strip
  2. Thermocouple type K
  3. Also suitable for uneven surfaces
  4. Measuring range short-term up to +500°C
    5. Stub type, uneven surface temperature probe with a Type K thermocouple connection. Probe is designed to be used for short term measurements.
    The surface temperature probe (thermocouple type K) features a thermocouple strip, which guarantees a fast response time and enables measurements to be carried out on uneven surfaces.

    It has a very large measuring range and can be used for many different applications:
    • Detection of thermal bridges in walls
    • Maintenance and checking of machinery
    • Process monitoring of production steps
    • Adjustment of heating systems (radiators, pipes, boilers)
    • Quality checks

    Fast-action surface probe (TC type K) with fixed cable 1.2 m.

    Temperature - Type K TC

    Measuring range
    -76.0° to 572.0 °F / -60 to +300 °C
    Accuracy
    Class 2 ¹⁾
    Reaction time
    3 sec
    1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C.

    General technical data

    Weight
    4.45 oz. / 126 g
    Dimensions
    length: 10 in. / length: 253 mm
    Length probe shaft tip
    1.535 in. / 39 mm
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.472 in. / 12 mm
    Cable length
    3.839 ft. / 1.17 m
    Fixed cable
    yes
    Length probe shaft
    4.528 in. / 115 mm
    Product colour
    grey
    Interface
    plug thermocouple
