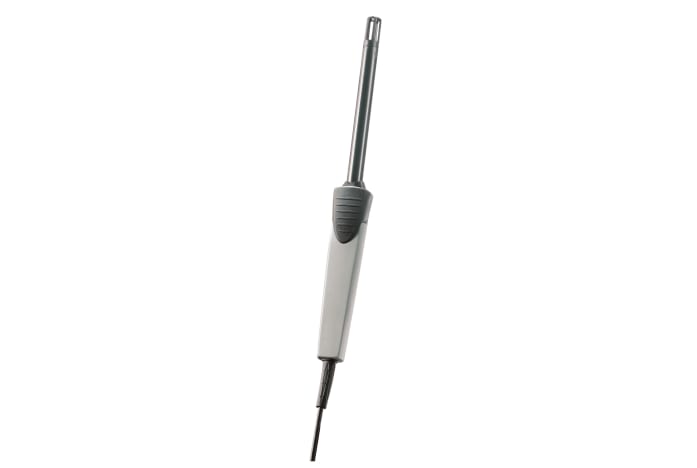

    Humidity/temperature probe

    0636 9735
  1. Humidity sensor with long-term stability
  2. Temperature measuring range: -20 to +70 °C
    3. Humidity/temperature probe
    Use the humidity/temperature probe (with an appropriate measuring instrument) for the reliable measurement of relative humidity and temperature. Our humidity sensor is durable and traceable to international humidity standards, such as ILAC, PTB and NIST.

    Humidity/temperature probe (Ø 12 mm) with 110 cm fixed cable.

    Temperature - NTC

    Measuring range
    -4.0° to 158.0 °F / -20 to +70 °C
    Accuracy
    *Please also take into account the device uncertainty.
    ±0.4 °F / ±0.2 °C

    Humidity - Capacitive

    Measuring range
    0 to +100 %rH
    Accuracy
    long-term stability: ±1 %RH / year
    ±0.03 %rF/K (k=1)
    *The sensor accuracy corresponds to the system accuracy.
    ±2 %rH at +77 °F (+2 to +98 %rH) / ±2 %RH at +25 °C (+2 to +98 %RH)

    General technical data

    Diameter probe shaft
    0.472 in. / 12 mm
    Cable length
    45.669 in. / 1,160 mm
    Length probe shaft
    5.512 in. / 140 mm
