Thermometer strips determine the surface temperature of the measurement object within temperature zones or as a maximum value.
For temperature control, the self-adhesive films are simply stuck onto the measurement object. If the temperature limit values are exceeded, the measuring strips have a lightning quick reaction with irreversible color changes. This enables reliable detection of whether limit values have been exceeded.
Maximum precision for temperature control between 37 and 280°C.
Three formats for small to very small fast moving measurement objects too.
High measuring accuracy of ±1.5°C in the 29 to 150°C temperature range.
As from a temperature of 150°C, the measuring accuracy is +1% of the respective temperature value.
Maximum efficiency and measuring precision at an impressive price.
Produkte ansehen

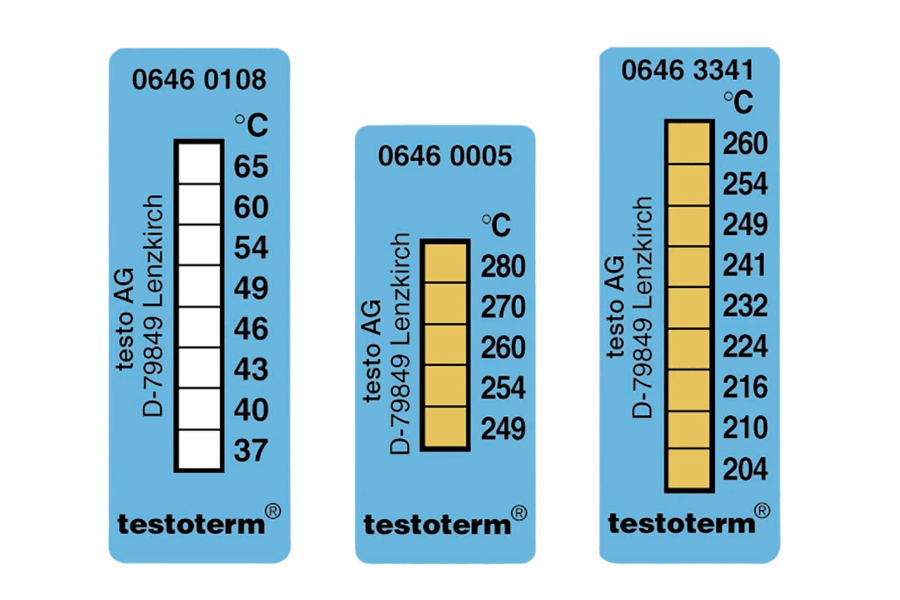

Die Temperaturmessstreifen von Testo sind in drei verschiedenen Formaten und Leistungsprofilen verfügbar:
Temperaturmessstreifen mit Messbereich für bewegliche, kleine Teile und Langzeitmessung.
Messpunkte mit Maximalwert und extrem kurzer Reaktionszeit.
Mini-Indikatoren mit Messbereich für sehr kleine Objekte.

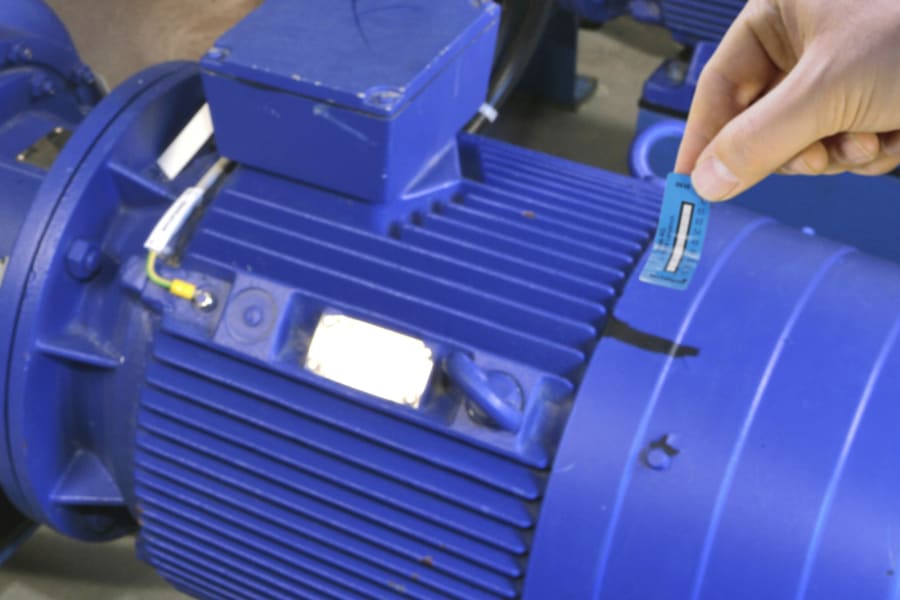

Testo's temperature stickers are more and more frequently used for temperature control – for example in the electrical industry, automotive engineering, research and aerospace technology. Because their efficiency is unbeatable when tasks such as preventive maintenance, quality assurance, or proof of warranty abuse are involved. You will find out about important background elements and application tips for professional temperature control with measuring strips here.
Measuring strips that have been attached properly (without any bubbles) adhere firmly and reliably to the measurement object. They do not come off even when confronted with substances such as oil, petrol, solvents, or water. They can only be taken off manually. For instance, if you remove the measuring strips by hand in order to stick them into your documentation.
Temperaturmessstreifen sind ideal für die effiziente Temperaturkontrolle. Einfach anzuwenden, liefern sie sehr zuverlässige Ergebnisse. Noch präziser wird Ihre Temperaturkontrolle, wenn Sie die folgenden Hinweise berücksichtigen:
Achten Sie darauf, dass Oberfläche und Messteile sauber und trocken sind.
Temperaturmessstreifen sollten kühl gelagert werden: Optimal sind 6 ... 10 °C. Die Lagertemperatur sollte 25 °C nicht überschreiten.
Beim Aufkleben der Messstreifen dürfen keine Luftbläschen entstehen.
Lagern Sie Temperaturmesstreifen nicht zu lange. Messtreifen bis 50 °C sind max. 6 Monate haltbar, Messtreifen ab 50 °C mit 12 Monaten deutlich länger.
Although there are sophisticated chemical processes behind the way measuring strips work, they are very simple in design. Temperature-sensitive elements are located under a transparent protective layer. These are the so-called phase-transforming indicators. The temperature measuring strips themselves consist of different mixtures of chemicals, which are produced on special absorptive paper substrates.
If the pre-defined temperatures are reached, the chemical melts and is absorbed by the substrate. The chemical reaction is shown by the change of color. Important: the color that develops is irreversible, because the chemical reaction can only occur once. Further temperature fluctuations no longer have any influence on the color. Perfect temperature control guaranteed!
There are heat-sensitive elements in the thermometer strips, mini indicators, and measuring points. At defined temperatures, chemical reactions are triggered that manifest themselves as a color change: The originally silver or gold-colored temperature surface changes to grey to black.
You can also deal with temperature control with virtually no effort using our measuring strips. Because you can remove the used measuring strips with the temperature information from the surface without any problem. As the adhesive surface is reusable, you can re-attach the measuring strips to your inspection report or temperature documentation.
More measuring instruments from Testo
Thermometer strips are extremely efficient. However, they are not suitable for numerous tasks in classic temperature control, e.g. in heating engineering and air conditioning technology, or in cleanrooms. For this, Testo offers a wide range of high-precision temperature measuring instruments. Precisely tailored to our customers' requirements, and therefore field tested a million times. You can get an overview here:
Testo offers a variety of solutions for measuring surface temperature. Depending on the application, a surface thermometer with a special measuring head is ideal for you. Thermography is increasing in popularity. Temperature measurement with thermal imagers is extremely convenient and highly precise. The attractive price-performance ratio of the Testo thermal imagers is impressive here. Testo's infrared thermometers are ideal for measuring the temperature of poor thermal conductors, such as ceramic or rubber; as well as fast moving, or critical objects. Non-contact, high-precision, and lightning fast.
Our temperature data loggers have been proving their worth in terms of measuring the temperature and humidity of goods in transit for over a decade.
Testo's immersion thermometers are not only indispensable for measuring the temperature of liquids, they are at the same time penetration thermometers and can even measure the air temperature precisely.
Are you looking for a thermometer that gets by without a handheld instrument? Then we recommend you use the innovative Testo Smart Probes. Smart Probes combine high-precision measurement with the advantages of the smart new world. Because the values measured by the temperature probe are wirelessly transmitted to your smartphone or tablet. And thanks to the testo Smart App, values are not only displayed, but also stored, documented, emailed.
