    Super-quick, waterproof immersion/penetration probe, T/C Typ...

    0602 2693

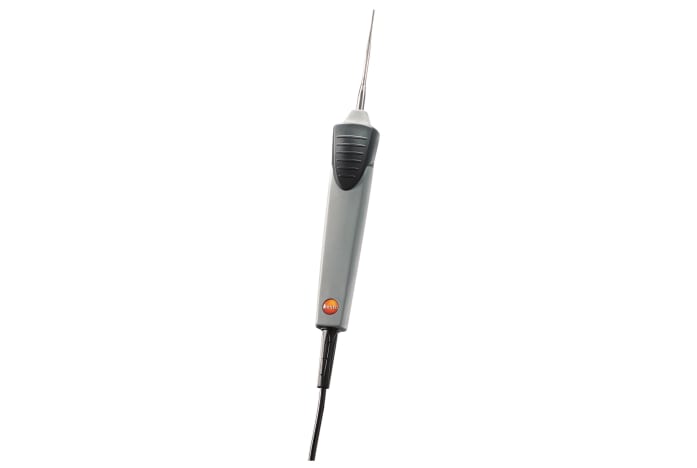

    Fast-action, waterproof immersion/penetration probe
    $ 206.00
    1
  1. 1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
  2. Very short response time of 3 seconds
  3. Measuring range: -60 to +800 °C
  4. Splash-proof in accordance with IP54
    5. Super-quick, waterproof immersion/penetration probe, T/C Type K
    The immersion and penetration probe (thermocouple type K) is used primarily for measurements in water, to ensure that heating systems are configured correctly.

    The very slim probe tip guarantees fast temperature recording. The probe reacts really quickly, with a response time of three seconds. In addition, the probe is splash-proof in accordance with protection class IP54.

    Fast-action immersion/penetration probe (TC type K) with fixed cable 1.2 m.

    Temperature - Type K TC

    Measuring range
    -76.0° to 1472.0 °F / -60 to +800 °C
    Accuracy
    Class 1 ¹⁾
    Reaction time
    3 sec
    1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

    General technical data

    Weight
    5.29 oz. / 150 g
    Housing
    Plastic
    Protection class
    IP54
    Product colour
    grey; Black; silver
    Length probe shaft tip
    0.551 in. / 14 mm
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.059 in. / 1.5 mm
    Cable length
    4.921 ft. / 1.5 m
    Length probe shaft
    2.362 in. / 60 mm
