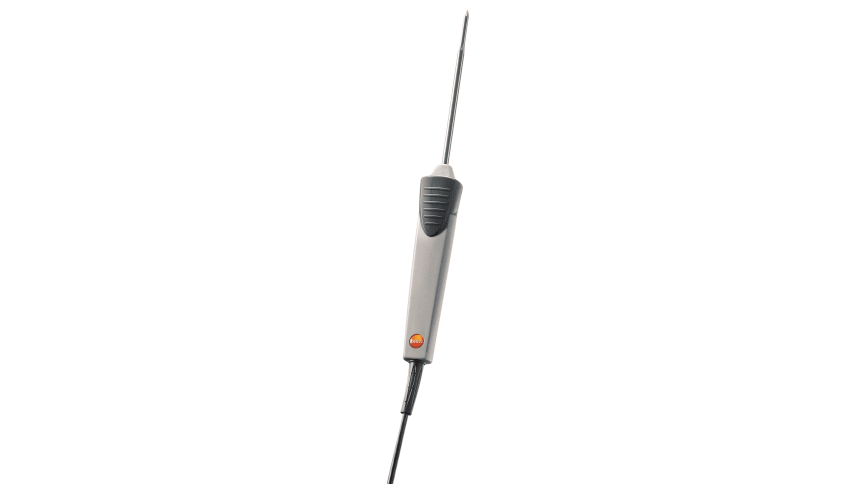

    Waterproof Immersion Probe

    Product no. 0602 1293
    Waterproof immersion/penetration probe, TC Type K
    $ 78.00
    1
    Find dealer
    Ships in approximately: 1 working days
    Your advantages
  1. Thermocouple type K
  2. Response time of 7 seconds
  3. Waterproof
  4. Measuring range: -60 to +400 °C
  5. A Type K Thermocouple waterproof immersion/penetration probe. This probe is capable of reading temperature values from -76.0° to 752.0 °F.

    Description

    The waterproof immersion and penetration probe (thermocouple type K) can be connected to many different measuring instruments. The probe can be used in a variety of applications, e.g. in industrial production or quality assurance.

    Delivery Scope

    1 x waterproof immersion/penetration probe (TC type K) with fixed cable.

    Related Products

    Technical data

    Temperature - Type K TC

    Measuring range
    -76.0° to 752.0 °F / -60 to +400 °C
    Accuracy
    Class 2 ¹⁾
    Reaction time
    7 sec
    1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C.

    General technical data

    Weight
    3.95 oz. / 112 g
    Length probe shaft tip
    1.969 in. / 50 mm
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.146 in. / 3.7 mm
    Cable length
    3.806 ft. / 1.16 m
    Fixed cable
    yes
    Length probe shaft
    4.488 in. / 114 mm
    Product colour
    grey
    Interface
    plug thermocouple
