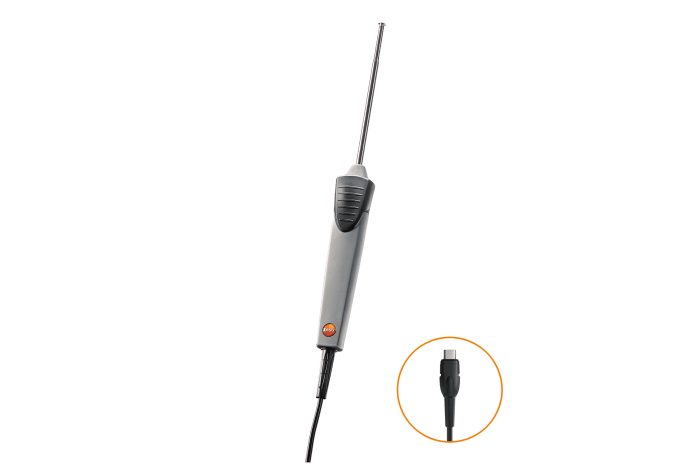

    Waterproof surface probe NTC with TUC connector

    Product no. 0615 1912

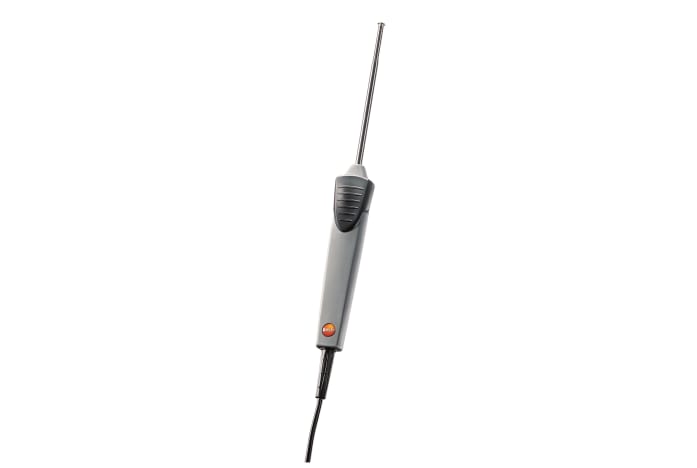

    Waterproof NTC surface probe for flat surfaces
    $ 114.75
    1
    Ships in approximately: 1 working days
    Your advantages
  1. NTC temperature sensor
  2. Measuring accuracy of up to ±0.2 °C
  3. Ideal for measurements on refrigeration systems, in cold storage warehouses/rooms or outdoors
  4. Measuring range: -50 to +150 °C
  5. Thanks to its NTC sensor, the waterproof surface temperature probe delivers reliable, accurate measurement results even at low temperatures. For measurements on flat surfaces.

    Description

    The waterproof surface temperature probe (NTC) is ideal for measuring the temperature on refrigeration systems, in cold storage rooms, in cold storage warehouses and also outdoors. Its integrated NTC sensor means that you can also count on accurate measurement results at low temperatures.

    Delivery Scope

    Waterproof surface temperature probe (NTC) with fixed cable 1.2 m and TUC connector

    Technical data

    Temperature - NTC

    Measuring range
    -58.0° to 302.0 °F ¹⁾ / -50 to +150 °C ¹⁾
    Accuracy
    ±0.7 °F (Remaining Range) / ±0.4 °C (Remaining Range)
    ±0.5 % of mv (212° to 302 °F) / ±0.5 % of mv (100 to +150 °C)
    ±0.4 °F (-13° to 166.8 °F) / ±0.2 °C (-25 to +74.9 °C)
    Reaction time
    35 sec
    1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

    General technical data

    Weight
    3.74 oz. / 106 g
    Dimensions
    5.5 x 1.1 x 0.9 in. / 140 x 28 x 24 mm
    Cable length
    3.937 ft. / 1.2 m
    Diameter probe shaft
    0.197 in. / 5 mm
    Diameter probe shaft tip
    0.236 in. / 6 mm
    Length probe shaft
    4.528 in. / 115 mm
    Length probe shaft tip
    1.969 in. / 50 mm
    Fixed cable
    yes
    Product colour
    grey

    Accessories

    Accessories

  6. Accessories
    Silicone heat paste
    Silicone heat paste (14g), Tmax = +260°C
      Product no.:
      0554 0004
      $ 30.60
      1
