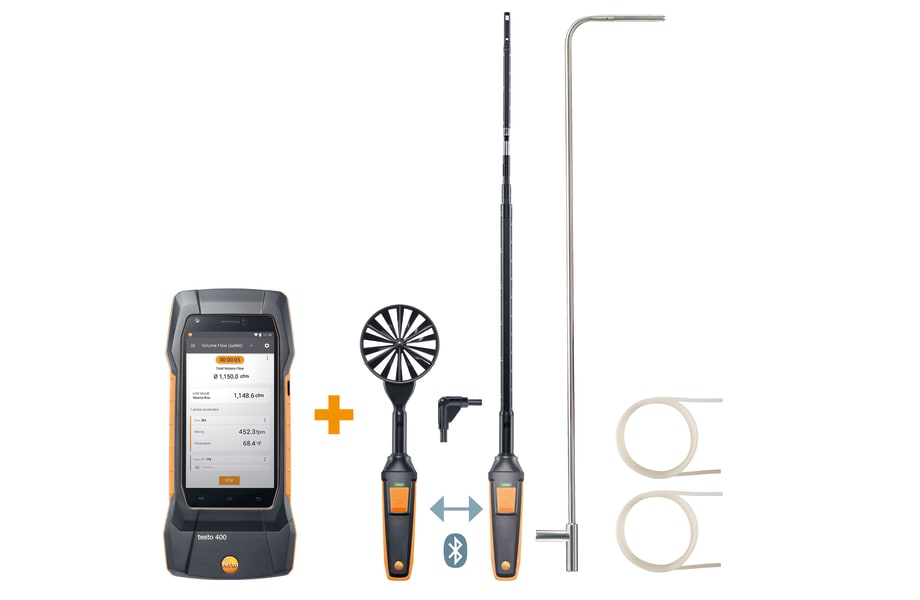

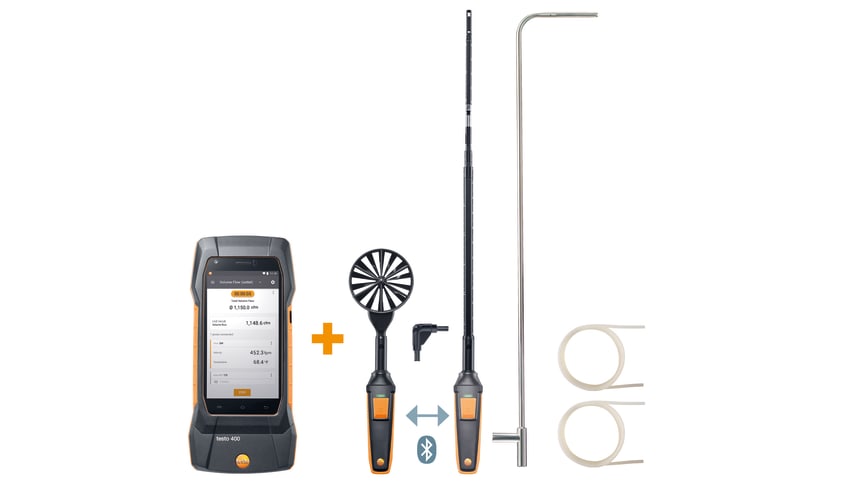

testo 400 Air Flow Kit - For TAB / Commissioning Professionals

testo 400 is the universal measuring instrument for all TAB / Commissioning and IAQ professionals, enabling them to measure, document and analyze all Airflow and IAQ parameters with just one instrument.

Smart support through stored measurement menus and evaluation of measuring values according to the traffic light principle – for error-free measurements
Manage all the relevant customer data, including measuring points, directly in the instrument - work directly and efficiently on site
Complete and send measuring values with full documentation, including photos, comments and your own logo directly on site – get to the next job faster
Probe heads can be changed without restarting the instrument – easy handling with no lost time
Calibration of probes which is independent of the measuring instrument and adjustment function at up to six measuring points for zero-error display – fewer downtimes and high-precision measurements

As consultants, experts, technical service providers, or service technicians in the air conditioning and ventilation sector, the testo 400 therefore supports you in the truly smart performance of your measuring tasks. Relevant quality parameters in industrial production and manufacturing processes can also be reliably and accurately checked using the testo 400.

Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.5 % of mv ±1 Digit (Remaining Range) ±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C)
Resolution	0 °F / 0.1 °C

Measuring range

-40.0° to 302.0 °F / -40 to +150 °C

Accuracy

±0.5 % of mv ±1 Digit (Remaining Range)

±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C)

±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C)

±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C)

Resolution

0 °F / 0.1 °C

Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C

Measuring range

-328.0° to 2498.0 °F / -200 to +1370 °C

Accuracy

±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit

Resolution

0.1 °F / 0.1 °C

Measuring range	0 to +80 InH₂O / 0 to +200 hPa
Accuracy	±(0.0 InH₂O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH₂O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa) ±(0.0 InH₂O + 1 % of mv) ±1 Digit (0 to 25 InH₂O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa)
Resolution	0.000 InH₂O / 0.001 hPa

Measuring range

0 to +80 InH₂O / 0 to +200 hPa

Accuracy

±(0.0 InH₂O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH₂O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)

±(0.0 InH₂O + 1 % of mv) ±1 Digit (0 to 25 InH₂O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa)

Resolution

0.000 InH₂O / 0.001 hPa

Measuring range	280 to 440 InH₂O / 700 to 1100 hPa
Accuracy	±1 InH₂O / ±3 hPa
Resolution	0.1 InH₂O / 0.1 hPa

Measuring range

280 to 440 InH₂O / 700 to 1100 hPa

Accuracy

±1 InH₂O / ±3 hPa

Resolution

0.1 InH₂O / 0.1 hPa

Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH))
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth®; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C
*TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.

Weight

17.99 oz. (instrument) / 510 g (instrument)

Dimensions

8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH))

Operating temperature

23.0° to 113.0 °F / -5 to +45 °C

Housing

Plastic

Protection class

IP40

Connectable probes

4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable

Product colour

black/orange

Camera image size

Main camera: 8.0 MP; Front camera: 5.0 MP

Battery life

approx. 10 hrs continuous operation

Display type

5.0" touch display, HD 1280*720 pixels, IPS (160 k)

Power supply

Rechargeable li-ion battery (5550 mAh)

Interface

Bluetooth®; USB; WLAN

Memory

2 GB; 1,000,000 measuring values

Storage temperature

-4.0° to 140.0 °F / -20 to +60 °C

*TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.

Weight	98.77 oz. / 2800 g
Dimensions	20.5 x 16.1 x 6.3 in. LxWxH / 520 x 410 x 160 mm LxWxH
Housing	Plastic
Product colour	Black

Weight

98.77 oz. / 2800 g

Dimensions

20.5 x 16.1 x 6.3 in. LxWxH / 520 x 410 x 160 mm LxWxH

Housing

Plastic

Product colour

Black

Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C) ±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C)
Resolution	0.1 °F / 0.1 °C

Measuring range

-4° to 158 °F / -20 to +70 °C

Accuracy

±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C)

±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C)

Resolution

0.1 °F / 0.1 °C

Measuring range	5 to 95 %rH
Accuracy	Hysteresis: ±1.0 %rH ±3 %rH (65 to 90 %rH) ±2 %rH (35 to 65 %rH) ±5 %rH (Remaining Range) long-term stability: ±1 %RH / year ±0.06 %rF/K (k=1) ±3 %rH (10 to 35 %rH)
Resolution	0.1 %rH

Measuring range

5 to 95 %rH

Accuracy

Hysteresis: ±1.0 %rH

±3 %rH (65 to 90 %rH)

±2 %rH (35 to 65 %rH)

±5 %rH (Remaining Range)

long-term stability: ±1 %RH / year

±0.06 %rF/K (k=1)

±3 %rH (10 to 35 %rH)

Resolution

0.1 %rH

Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
Accuracy	±1.2 InH₂O / ±3.0 hPa
Resolution	0.1 InH₂O / 0.1 hPa

Measuring range

+280 to +440 InH₂O / +700 to +1100 hPa

Accuracy

±1.2 InH₂O / ±3.0 hPa

Resolution

0.1 InH₂O / 0.1 hPa

Measuring range	0 to 9843 fpm / 0 to 50 m/s
Accuracy	±(98.4 fpm + 5 % of mv) / ±(0.5 m/s + 5 % of mv) (20.01 to 30 m/s) ±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv) (0 to 20 m/s)
Resolution	1.97 fpm / 0.01 m/s

Measuring range

0 to 9843 fpm / 0 to 50 m/s

Accuracy

±(98.4 fpm + 5 % of mv) / ±(0.5 m/s + 5 % of mv) (20.01 to 30 m/s)

±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv) (0 to 20 m/s)

Resolution

1.97 fpm / 0.01 m/s

Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	14.1 oz. / 400 g
Dimensions	30.7 x 2.0 x 1.6 in. / 780 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length telescope	39.37 in. / 1,000 mm
Probe head diameter	0.354 in. / 9 mm
Diameter telescope	0.63 in. / 16 mm
Product colour	black/orange
Diameter probe shaft	0.354 in. / 9 mm
Length probe shaft	9.055 in. / 230 mm
Battery life	21.5 h
Battery type	4 x AA batteries
Data transfer	Bluetooth®
Radio range	65.616 ft. / 20 m

Storage temperature

-4° to 140 °F / -20 to +60 °C

Weight

14.1 oz. / 400 g

Dimensions

30.7 x 2.0 x 1.6 in. / 780 x 50 x 40 mm

Operating temperature

23° to 122 °F / -5 to +50 °C

Length telescope

39.37 in. / 1,000 mm

Probe head diameter

0.354 in. / 9 mm

Diameter telescope

0.63 in. / 16 mm

Product colour

black/orange

Diameter probe shaft

0.354 in. / 9 mm

Length probe shaft

9.055 in. / 230 mm

Battery life

21.5 h

Battery type

4 x AA batteries

Data transfer

Bluetooth®

Radio range

65.616 ft. / 20 m

Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C

Measuring range

-4° to 158 °F / -20 to +70 °C

Accuracy

±0.9 °F / ±0.5 °C

Resolution

0.1 °F / 0.1 °C

Measuring range	59.1 to 6890 fpm / 0.3 to 35 m/s
Accuracy	19.7fpm +1.5% of mv (from 59 to 3937fpm) / ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s) 39.4fpm +1.5% of mv (from 3938 to 6890fpm) / ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
Resolution	1 fpm / 0.01 m/s

Measuring range

59.1 to 6890 fpm / 0.3 to 35 m/s

Accuracy

19.7fpm +1.5% of mv (from 59 to 3937fpm) / ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)

39.4fpm +1.5% of mv (from 3938 to 6890fpm) / ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)

Resolution

1 fpm / 0.01 m/s

Storage temperature	-4° to 158 °F / -20 to +70 °C
Weight	4.4 oz. / 125 g
Dimensions	7.1 x 4.1 x 1.8 in. / 180 x 105 x 46 mm
Operating temperature	-4° to 158 °F / -20 to +70 °C
Probe head diameter	3.937 in. / 100 mm
Product colour	Black

Storage temperature

-4° to 158 °F / -20 to +70 °C

Weight

4.4 oz. / 125 g

Dimensions

7.1 x 4.1 x 1.8 in. / 180 x 105 x 46 mm

Operating temperature

-4° to 158 °F / -20 to +70 °C

Probe head diameter

3.937 in. / 100 mm

Product colour

Black

Weight	0.9 oz. / 25 g
Dimensions	2.6 x 2.6 x 0.6 in. / 65 x 65 x 15 mm
Product colour	Black

Weight

0.9 oz. / 25 g

Dimensions

2.6 x 2.6 x 0.6 in. / 65 x 65 x 15 mm

Product colour

Black

Weight	3.32 oz. / 94 g
Operating temperature	32.0° to 1112.0 °F / 0 to +600 °C
Diameter probe shaft	0.276 in. / 7 mm
Housing	Metal housing
Length probe shaft	13.78 in. / 350 mm
Product colour	silver
Measuring range	+197 to +19685 fpm / +1 to +100 m/s

Weight

3.32 oz. / 94 g

Operating temperature

32.0° to 1112.0 °F / 0 to +600 °C

Diameter probe shaft

0.276 in. / 7 mm

Housing

Metal housing

Length probe shaft

13.78 in. / 350 mm

Product colour

silver
